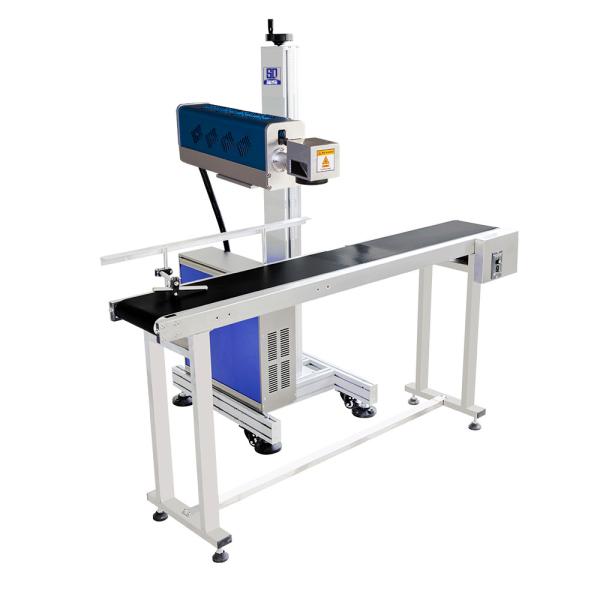

Fast Speed Non Metal Materials CO2 Fly Laser Marking Machine

Place of Origin : CHINA

Certification : ISO,CE

MOQ : 1 set

Price : Negotiation

Packaging Details : Wooden cases standard export package

Delivery Time : 5-7 working days

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200-500 Sets/Month

Name : CO2 fly laser marking machine

Laser Type : CO2

Application : Laser Marking

Key Selling Points : Easy to Operate

Laser power : 20W/30W/60W/100W

Applicable Material : Non-metal Materials

Laser wavelength : 1064nm

Cooling Mode : Air Cooling

Marking Depth : 0 ~0.5mm

Marking Speed : 7000mm/s

Gross Weight : 100KG

Marking area : 110*110mm/175*175mm/200*200mm/300*300mm

Contact Now

Fast Speed Non Metal Materials CO2 Fly Laser Marking Machine

CO2 fly laser marking machine is designed for assembly line, can be customized for any automatic production line, to meet the production needs of industrial automation era.It is the solution for laser marking plastic and natural materials such as wood, poly bag, plexiglass, paper, stone, textiles, and marble. The laser machine is extremely compact, modular and can fully integrated into any production line. The laser marking system is designed for high productivity while at the same time reducing operation costs.According to the power/model, the source is of a sealed type and then the supply with external gas is not necessary. When the source is semi-sealed, a refill can be simply with the replacement of a pressurized canister that provides the proper mixture of gases.

Technical Parameters
Laser power	20W/30W/60W
Laser Wavelength	10.6μm
laser type	CO2 laser
Max Single pulse energy	1.0mj
Pulse duration	6-250ns
Laser beam quality M2	<1.2
Repeating precision	±0.002mm
Maximum line speed	2 meters/s (Like beverage can reach 28,000 bottles per hour)
Operating system	Touch screen control system
Marking Area	110mm×110mm,200mm200mm,300mm300mm (optional)
Marking depth	0.01~1mm
Laser source	DAVI / Synrad (optional)
Galvo scanner	Sino-galvo
Marking speed	7000mm/s
Minimum character	0.15mm
Minimum line width	0.01mm
Repeating frequency	20KHz~60KHz
Control Software	Genuine EZCAD control system Compatible with win7/8/10
Control board	BJJCZ
Marking content	Graphics, text, bar codes, two-dimensional code, date, batch number, serial number
Graphic format supported	PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, CDR, DWG, etc.
Working voltage	220V / (50 OR 60 Hz) ,110V / 60Hz
OPerating parameter	0 - 40℃
Cooling type	Air cooling
Lifespan of laser tube	20000~30000 hours (recyclable)
Service Provided	installation,commissioning and training.Field maintenance and repair service,Video technical support,Engineers available to service machinery overseas
Packing size	120 88 38 cm
Gross Weight	100kg
Control interface	Standard USB port
Working environment	Clean and dust free or dust less
Certification	CE, FDA, ROHS
Warranty	2 Years
